New Tech BG7™ Commercial Box Gutter Machine





Click here to Download BG7 Brochure in PDF format.

Click here to go directly to the New Tech website.

STANDARD FEATURES

  • New and Improved Polyurethane Drive Rollers

  • Quick Change Power Pac™, Gas or Electric

  • Computer Length & Batch Control

  • Hydraulic Drive and Shear

  • Power Interruption Safety Circuit

  • Gutter Recognition Safety Photo Eye

  • Length Control Limit Switch

  • Push Button RUN/JOG Controls at Entry and Exit Ends

  • Welded Tubular Steel Frame

  • Dual Overhead Decoiler Rack

  • One Expandable Arbor



SPECIFICATIONS

BG7 GUTTER MACHINE
Length 14' 6" (4.4m)
Width 4' (1.7m)
Height 4' 3" (1.3m) w/Over Head Rack
          2' 8" (.8m) w/o Over Head Rack
Weight 1800 lbs. (820kg)

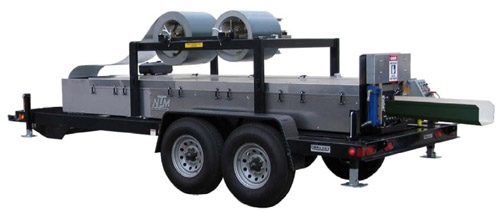

BG7 ON TRAILER
Length 17' 6" (5.3m)
Width 7' (2.1m)
Height 6' 3" (1.9m) with reel
Weight 3400 lbs. (1550kg)

SPEED
60 ft/min (18m/min) Approx.

DRIVE
Hydraulically Driven Polyurethane Rollers

SHEAR
Hydraulically Powered, Hardened Tool Steel Blades and Dies, Gutter Recognition Safety Photo Eye

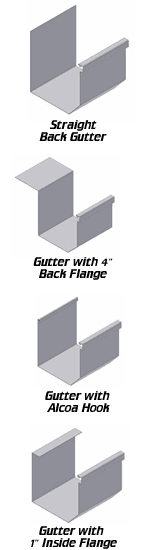

COIL WIDTH
20" (500mm) Straight Back, HK7, IF7
24" (600mm) BF4

MATERIALS FORMED
Steel 26 ga. to 22 ga. (.4mm to .8mm)
         (painted, galvanized, aluminized)
Aluminum .032" to .050" (.8mm to 1.3mm)
Copper 20 oz. to 24 oz. 3/4 hard
         (.7mm to .8mm)







OPTIONS - BG7™ Commercial Box Gutter Machine

Run Out Table
Conveyer style table attaches to shear and is used to support panel as it exits the machine. Two individually adjustable legs allow variation in height from 25” to 43”. Available in connectable 10 ft. sections.

Expandable Arbor
Used for holding coil. This arbor expands to the inside diameter of the coil for faster, easier loading. Can accommodate coils with 16” to 20” ID. Capacity is 3,000 lbs. when used with Dual Overhead Reel Stand or Single Free Standing De-Coiler.

De-Coiler Reel
Two-piece reel with a fixed diameter used for holding coils. Available for 16” or 20” ID. Capacity 3,000 lbs. when used with Dual Overhead Reel Stand or Single Free Standing De-Coiler.

Quick Change Power Pack
Used to quickly field convert SSH or FWM machine from gas engine to electric motor and back again as needed.


Trailer
NATM Compliant, 12,000 lb. tandem axle trailer used for towing any NTM roofing machine directly to the jobsite. Equipped with crane lifting eyes, 4 drop-foot jack stands and electric brakes w/ breakaway kit.



New Tech Machinery Roll Forming Equipment is Warranted for:

  • Limited THREE year parts/one year labor
  • Limited lifetime separation on drive rollers
  • Limited lifetime on stainless steel forming rollers
